KINGMA Tool Odometer Correction
Including support + all manuals + PcSuite connection software for Windows 11
KINGMA Odometer Correction Tool – Powerful & Affordable
The KINGMA Odometer Correction Tool is a clone version of the well-known Enigma mileage correction device.
With extensive software coverage updated to August 2024, the KINGMA Tool offers outstanding value for money and is considered one of the most powerful correction tools available on the market.
Like the original device, the KINGMA Tool is primarily based on offline programming, allowing direct work on instrument clusters, control modules, and EEPROMs without relying solely on an OBD interface. However, many OBD-based solutions are also integrated, making the device extremely versatile.
To verify exact vehicle compatibility, it is recommended to download and review the latest vehicle coverage list.
Main Functions & Features of the KINGMA Tool
Mileage correction and adjustment stored in control modules
Instrument cluster programming and repair
EEPROM & MCU read/write functionality
OBD2 programming and diagnostics support
Wide vehicle coverage including many modern vehicles
Multi-module programming support for clusters, BSI, EZS, CAS, BCM, and more
Service reset and inspection reset functions
Partial airbag crash data repair support
User-friendly touchscreen and PC-controlled operation
Professional-grade housing and high-quality components
USB PC connection for updates and extended functions
Automatic backup creation before writing data
Compact dimensions: 210 × 130 × 40 mm
Powered via 12V vehicle connection
Multilanguage interface: English, Polish, Spanish, French, Portuguese
Advantages of the KINGMA Tool
Offline programming allows direct module access without relying on OBD communication
High compatibility with analog and digital clusters including VDO, Marelli, Johnson Controls, Motometer, Yazaki, and more
No internet connection required
Stable programming processes with lower failure risk compared to OBD-only solutions
Multiple functions combined in one professional system
Included Cables
C0, C1, C4, C7, C8, C11, C12, C13, C30, C40, C41, C43, C45, C47
These cables are used for direct connection to instrument clusters, ECUs, EEPROMs, or OBD and vehicle-specific connections depending on the vehicle type and system.
Included Adapters
A0, A1, A3, A6, A7, A8, A9, A11, A14, A15
These adapters allow connection to EEPROM and MCU sockets, instrument cluster boards, and control modules without soldering, simplifying programming and data reading procedures.
The A16 adapter is not included in this package. MQB OBD programming may only be partially supported, but modules can still be programmed in bench mode after removal.
Technical Specifications
Power Supply:
12V DC power supply (vehicle battery)

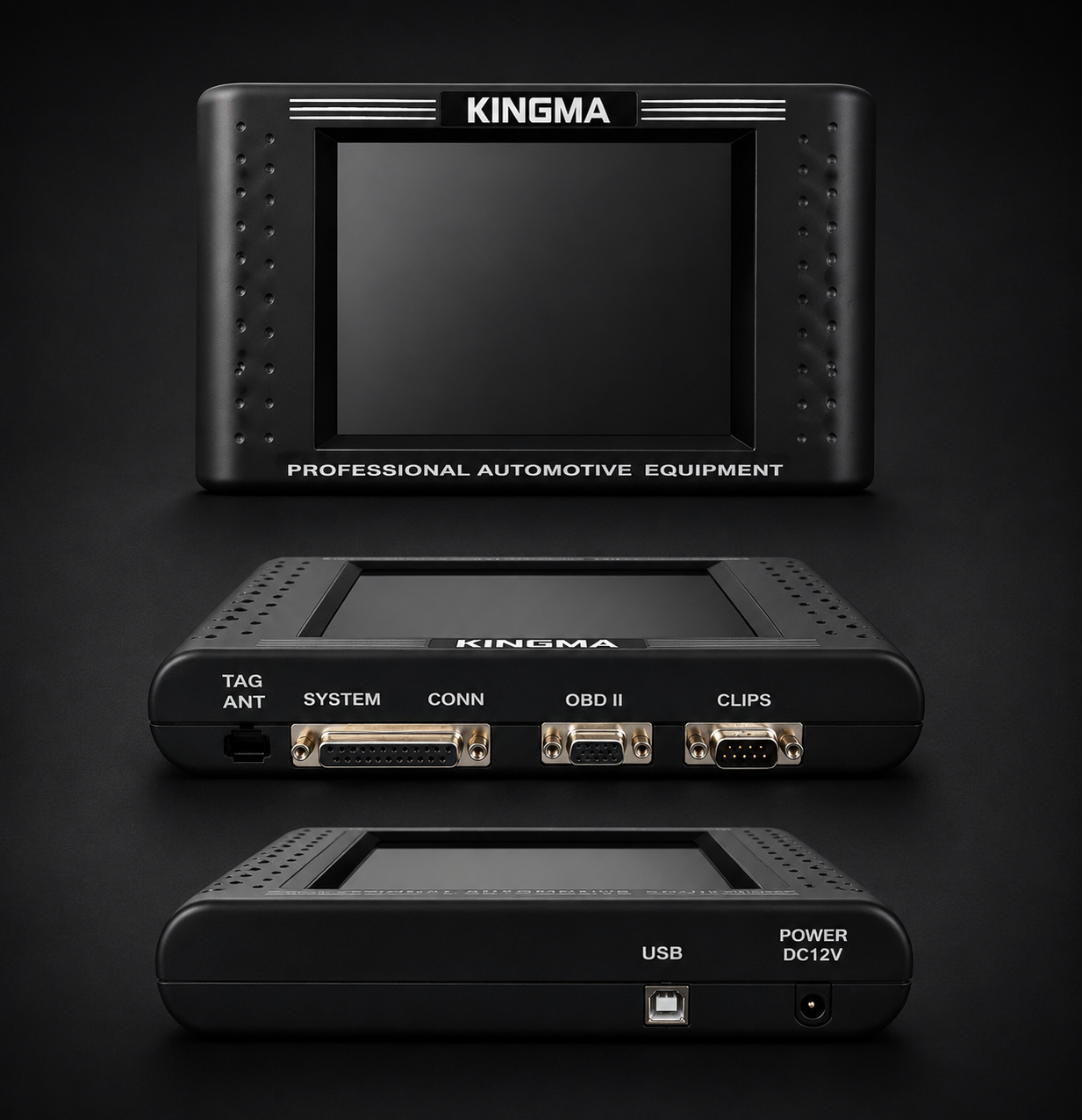

Device Connections:
12V power connector
DB25 system connector
DB9 clip connector
USB interface for PC connection
ANT TAG port for transponder/RFID communication
OBD2 connector
DB15 connector for additional vehicle connections
Additional Technical Features
Integrated OBD2 multiplexer for automatic protocol switching
Analog input for signal monitoring and voltage detection
Switchable +12V output controlled by electronic relay
Adjustable output from 1.2V to 5.5V
5.7-inch color touchscreen display (320×240 resolution)
Memory
10MB internal flash memory
4MB additional storage for backups and user data
USB 2.0 Full Speed PC connection
Wide operating temperature range suitable for workshop environments
Support, Warranty & Benefits
Technical Support & Customer Service
6 months of free technical support
Access to one of the world’s largest PDF instruction databases during the support period
Assistance from experienced technicians including files, solutions, and troubleshooting
Real-time aftersales support via WhatsApp and email
Warranty
1-year warranty on the device itself (excluding misuse or physical damage)
Opening the device voids the warranty immediately
What the KINGMA Tool Does NOT Require
No time-limited usage
No tokens or recharge credits required
Unlimited use of all functions
No mandatory updates
No subscription fees or recurring costs
